Recycled Metal Scrap Aluminum Copper Color Sorter
Advanced sorting solution for recycling aluminum and copper with precision color recognition technology.
Wenyao Color Sorter Features

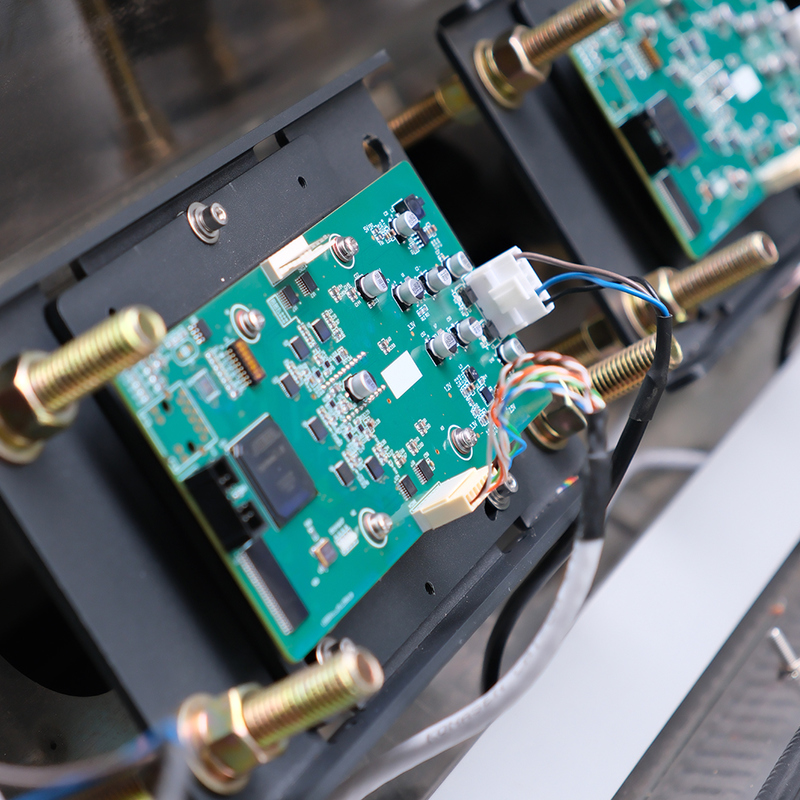

- CCD sensor with high-definition industrial lens
- Intuitive human-computer interface with image capture and holographic imaging
- High-quality ejector system with intelligent lighting source
- Sorting accuracy approaching 99.99%
- Intelligent algorithm with automatic rectification and targeted dedusting
Working Principle
Material is loaded into the in-feed hopper and moves along a vibrating plate to a sloping chute where it is individually checked at 360° by RGB full-color cameras. The system's software controls pneumatic devices to separate unwanted products from conforming ones.
Key Advantages
- Latest UHD imaging and analysis technology with high-speed processing
- AI self-learning function with one-key automation
- Multi-purpose design suitable for various materials
- High stability with excellent sorting accuracy and low energy consumption
- Compact design saves space and reduces delivery costs
- Imported ejectors with minimal air consumption
- Optional remote control via smart devices
- Easy installation with remote support available
Technical Specifications
| Model |
WYCS10-640 |
| Chutes/Channels |
10/640 |
| Throughput |
10-15t/h |
| Sorting Accuracy |
≥99.99% |
| Power |
6.5kw |
| Voltage |
180-240V/50Hz |
| Air Pressure |
0.6-0.8Mpa |
| Air Consumption |
<5M³/Min |
| Weight |
1800kg |
| Dimensions (L×W×H) |
3750×1540×1852mm |
Applications
Food Materials: Rice, wheat, corn, oats, buckwheat, barley, peanuts, sunflower seeds, nuts, beans, and more
Plastic Materials: Waste plastics, plastic pellets, bottle caps, PET scrap, ABS, PP, and other recycled plastics
Mineral Materials: Quartz, feldspar, barite, calcite, limestone, marble, and others
Other Materials: Tea leaves, dried vegetables, fruits, coffee beans, and dried seafood
Color Sorting Examples
Core Values
Customization, Dedication, and Innovation to exceed customer expectations.
Frequently Asked Questions
What is the warranty period?
Two years with lifelong software upgrade services.
What payment methods do you accept?
We accept L/C and T/T payments.
Do you provide overseas engineer services?
Yes, our engineers can provide on-site support when necessary.
Can we test samples?
Yes, we can send sample machines for testing or evaluate your materials remotely.
How do we operate the machine?
We provide installation instructions and training for your operators.
Do you supply spare parts?
Yes, we can provide necessary spare parts when needed.
